Brilliantly Made with You in Mind

Keep your pool or spa at the perfect temperature year-round with the Raypak Digital Gas Pool & Spa Heater (336 BTU). Recently named the #1 Pool Heater by Forbes, this heater is a tried-and-true favorite among pool professionals.

Built to withstand the harshest weather conditions, the Raypak Digital Gas heater offers the perfect balance of efficiency, convenience, and versatility. With a sleek, low-profile design and a durable, galvanized metal cabinet, this workhorse heater will integrate seamlessly into your existing pool pad while providing years of reliable service.

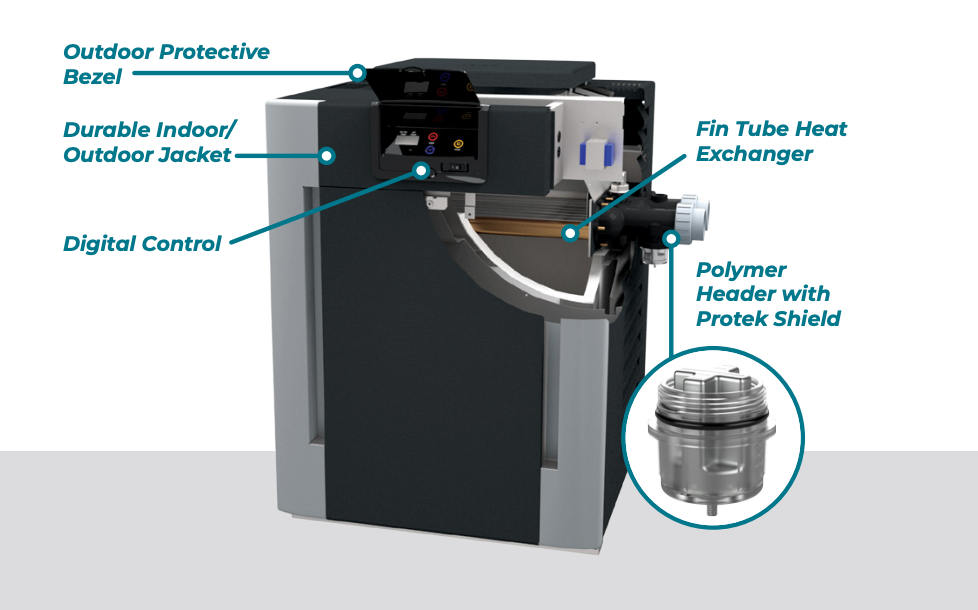

• Intelligent Digital Controls: Features an easy-to-use microprocessor-controlled thermostat to set your perfect pool or spa temperature. It can also easily tie into an existing remote control system.
• ProTek Shield™ Technology: This cutting-edge, patented module protects the heat exchanger from corrosion and extends the life of your heater. It is excellent for both chlorinated and saltwater pools.
• Self-Adjusting Burner: Automatically compensates for gas pressure fluctuations to ensure the heater always burns clean and safe.
• Long-Lasting Heat Exchanger: The straight-tube design eliminates bends and helical coils, reducing unnecessary friction. Available in your choice of standard Copper or heavy-duty Cupronickel.
• Corrosion-Resistant Cabinet: The outdoor protective bezel and durable galvanized metal jacket are engineered to withstand the elements.
• Flexible Installation: Its brilliant low-profile design makes it perfect whether you are upgrading an existing system or adding a brand new pool or spa

Technical Specifications:

• Model: 336A
• Input Rate: 332.5 MBTU/h
• Thermal Efficiency: 82%
• Installation: Indoor & Outdoor compatible
• Water Flow (Max): 100 GPM
• Voltage: 120/240 VAC, 1-Phase, 60Hz
• Dimensions: 26" Width x 28" Depth
• Weight: 230 lbs (Copper) / 235 lbs (Cupronickel/ASME)

How to Choose Your Heater Options

When adding this heater to your cart, you will need to select the correct fuel type and heat exchanger material for your specific pool setup. Here is a quick guide to help you choose:

Fuel Type: Natural Gas vs. Liquid Propane The fuel type you select is not a matter of preference; it depends entirely on what type of gas supply your home currently uses.

• Choose Natural Gas: If your home is connected to a municipal/city natural gas line. Natural gas is piped directly to your house and pool equipment, providing a continuous, uninterrupted supply.
• Choose Propane : If your property does not have access to city gas lines and relies on a large, dedicated propane tank sitting on your property.

Heat Exchanger Material: Copper vs. Cupronickel The heat exchanger is the metal tubing inside the heater that gets hot and warms your pool water. Both are excellent options, but your choice depends on your pool's water chemistry.

• Choose Copper (Standard): Standard copper is highly efficient at transferring heat and is the industry standard. It is the most cost-effective choice and is perfect for traditional, well-maintained chlorine pools with consistently balanced water chemistry.
• Choose Cupronickel (Heavy Duty): Cupronickel is a tougher, more durable alloy made of copper and nickel. It is highly resistant to corrosion. You should strongly consider upgrading to Cupronickel if you have a saltwater pool, a commercial pool, or if you struggle to keep your water chemistry (like pH and alkalinity) perfectly balanced. It provides extra peace of mind and extends the lifespan of the heater in harsher conditions.

Please Note: Raypak is a Rheem company. Depending on availability, your heater may arrive branded as either Raypak or Rheem. Rest assured, they are the exact same high-quality product manufactured on the exact same assembly line.

Downloads and Additional Links

• Raypak Digital Brochure
• Raypak Installation & Operation Manual
• Raypak Pool Heater Limited Warranty.

Shipping Note: This product ships via freight. A liftgate is required for delivery (a platform on the back of the truck to lower the item to the ground).
